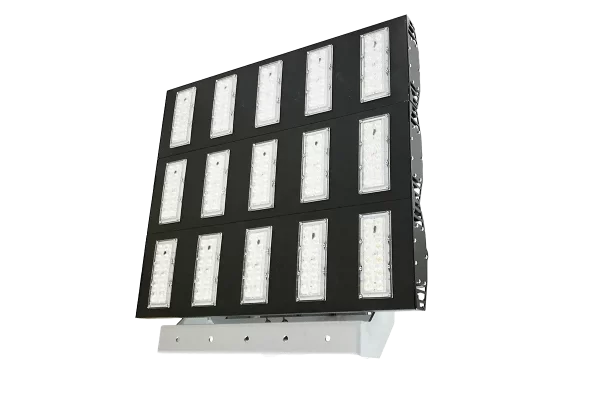

phEvoSTADIOITA

Light fixture made from extruded aluminum with high qualities of lightness, corrosion-resistant and weather-resistant anodized finish.

Category: Tags: , , , , , ,

phEvoSTADIOITA

Light fixture made from extruded aluminum with high qualities of lightness, corrosion-resistant and weather-resistant anodized finish.

Richiedi maggiori informazioni

Carbon steel structure with powder-coated paint. Optics in PMMA/PC, IP66 and IK06 (IK08 upon request), guaranteed against UV rays and yellowing.

Surge protection device up to 6kV. Insulation class I (II upon request). Anti-condensation valve. Bolts in AISI 304. Component replacement can be performed using common tools (only by authorized personnel).

Support device with adjustable bracket system using common tools. Connection to the network via an external cable with IP68 connector. External IP67 power supply connected with double-insulated rubber cables.

Power supply with nominal voltage of 220-240 Vac, 50/60 Hz frequency. Efficiency ≥90% at full load, power factor cosφ0.95. Device efficiency up to 120m/W.

Download

Download Datasheet
