phLuminaELP2M

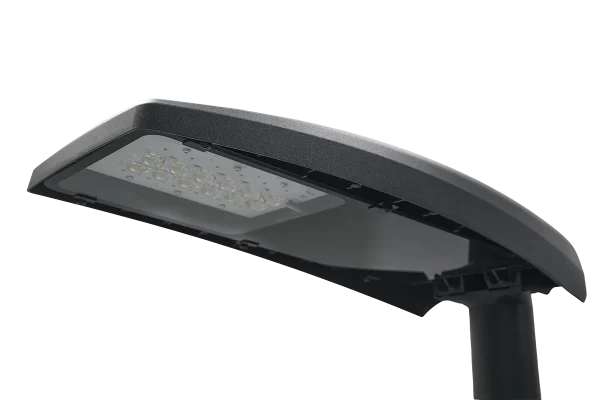

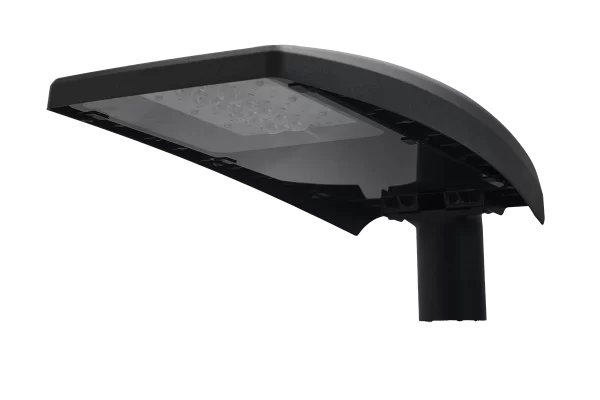

Street luminaire made in die-cast aluminum body, dimensions 595x236xh117mm, adjustable tilt support and pole or arm mounting.

phLuminaELP2M

Street luminaire made in die-cast aluminum body, dimensions 595x236xh117mm, adjustable tilt support and pole or arm mounting.

Richiedi maggiori informazioni

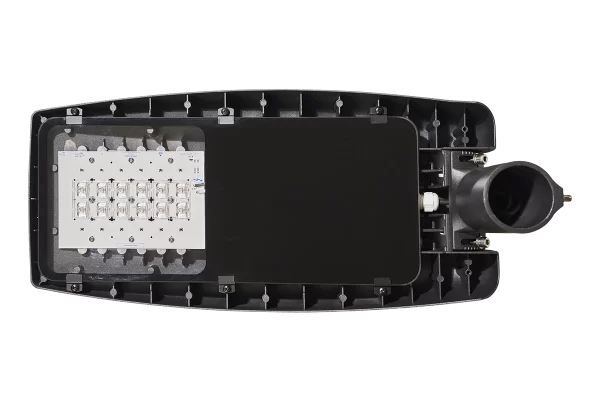

Transparent and tempered glass resistant to impact and thermal shocks. Stainless steel screws. LED circuit equipped with 2×2 road optics. Each LED has a nominal luminous flux expressed in Lumen/Watt at many current setting(mA). Optical efficiency >93%.

Light color 3000K/4000K. Color rendering index (CRI) ≥ 70. Reduced maintenance thanks to the average lifespan of each LED exceeding 100,000 hours L90B10. Multiple possibilities for adjusting the luminous flux. IP66 and IK09 protection rating. Insulation class II. Operating voltage 170-240VAC 50/60Hz.

Driver efficiency ≥90% at full load, power factor cosϕ0.95. Total weight 6.0 Kg. Operating temperature at steady state Ts (LED) max 85°C. Certifications CE, ENEC.

Download

Download Datasheet
