phLuminaTrilogy

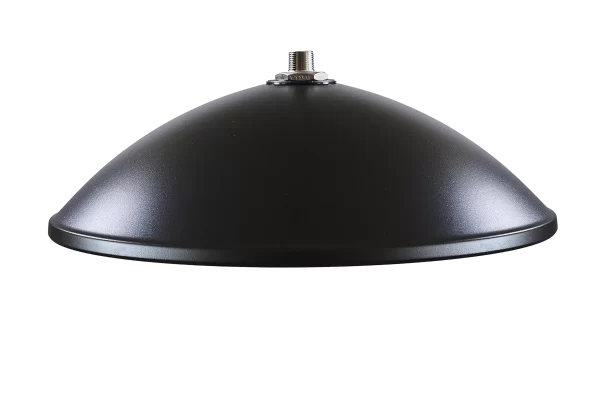

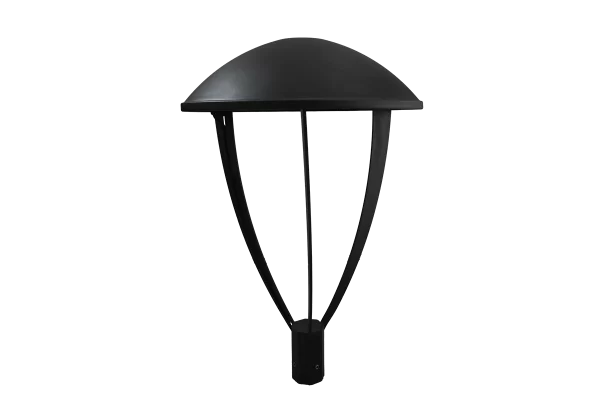

Street furniture fixture consisting of corrosion-resistant aluminum cap with head-pole (TOP) attachment in Aisi 430, reach (R1/R2) in Aisi 430/painted aluminum, suspension S) 3/4 gas in galvanized steel (optional Aisi 316), rope (SF) in Aisi 304.

phLuminaTrilogy

Street furniture fixture consisting of corrosion-resistant aluminum cap with head-pole (TOP) attachment in Aisi 430, reach (R1/R2) in Aisi 430/painted aluminum, suspension S) 3/4 gas in galvanized steel (optional Aisi 316), rope (SF) in Aisi 304.

Request more information

Epoxy powder coating. PMMA/PC IP66 and IK06 optics guaranteed against UV and yellowing. Overvoltage (surge) protection device up to 6kV. Body insulation class I or II, IP66 and IK06. Class II internal wiring and connections.

Anti-condensation valve. AISI 304 hardware. Internal components are replaced using common tools. Access to components by
disassembling the lower part(only by authorized personnel). Support device to the pole with tumbler system, length 90mm and diameter 60mm, fixable by allen wrench.

Mains connection via external cable with IP68 M20x1.5 connector (optional). Power supply, plate and possible remote control (optional)
interconnected by double-insulated single-pole rubberized cables. Power supply with nominal voltage 220-240 Vac, frequency 50/60 Hz. Efficiency ≥90%
at full load, power factor cosϕ0.95. DALI interface (optional).

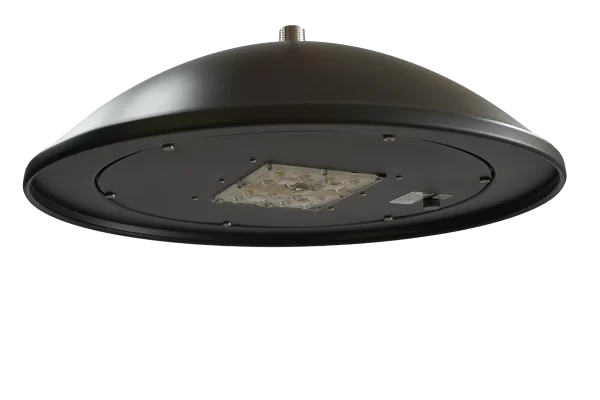

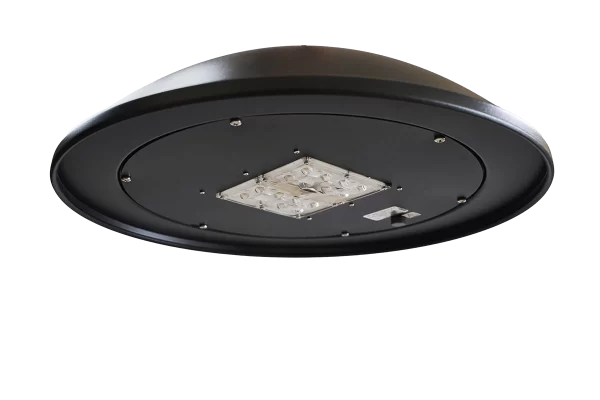

LED service life>100,000 hours L90B10. Energy performance ≥A++. Color from 2200k to 5700k, CRI>70. Luminaire efficiency up to 160lm/W

Download

phLuminaTrilogy-(A)

Download Datasheet

phLuminaTrilogy-(B)

Download Datasheet
